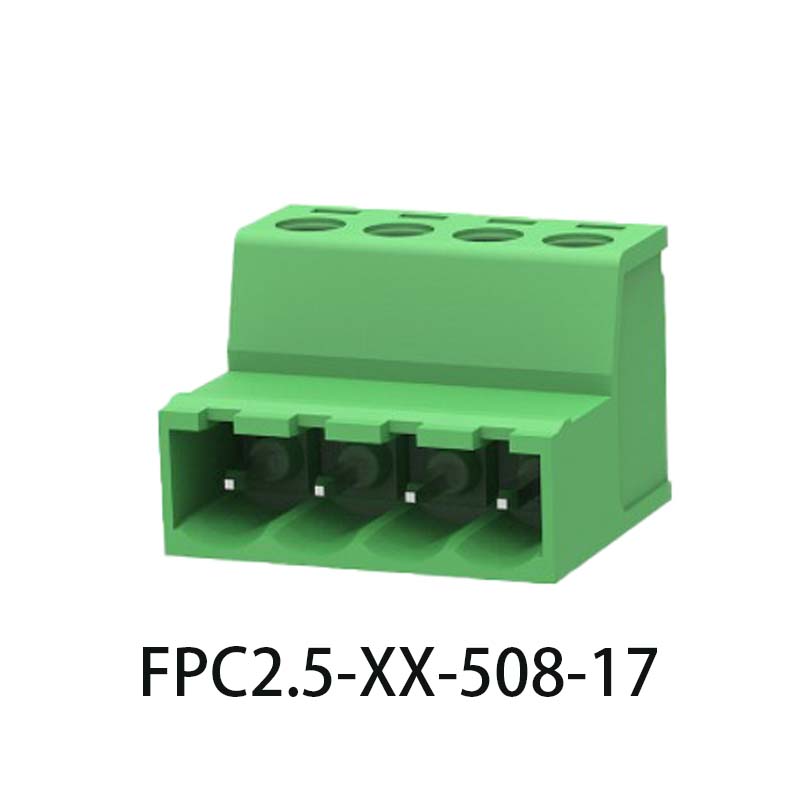

FPC2.5-XX-508-17 PCB spring terminal block

FPC2.5-XX-508-17 PCB spring terminal block

PCB spring terminal block Rated current: 15 A Rated voltage: 300 V Pitch:5.08mm
2
3
4
5
6

7
8
9
10
11
12

13
14
15
16

20
22
24

Products weight: Package quantity:

Details

UL/CUL
Use Group	B	C	D
Use Group	300	-	300
Rated Current [A]	15	-	10
Wire Range [AWG]	12月28日
Dielectric Voltage-Withstand	1.6KV

IEC
Overvoltage Category	III	III	II
Contamination Class	3	2	2
Rated Voltage [V]	250	320	400
Rated Current [A]	12	12	12
Impulse withstand voltage [KV]	4	4	4
Conductor cross section [mm²]	0.2-2.5

Material
Insulation Material	PA66
Flame relardant rating	UL94V-0
Conductor Material	Copper alloy
Plating of conductor surface	Sn plated

Other Data
Pitch/Poles [mm]/[P]	5.08/2-24
Stripping Length [mm]	7--8
Screw/Torque(Max)[N.m]	M3/0.5
Operating temperature [℃]	-40~+105
Soldering temperature	/
Pin dimensions [mm]	/
PCB Hole Diameter [mm]	/
