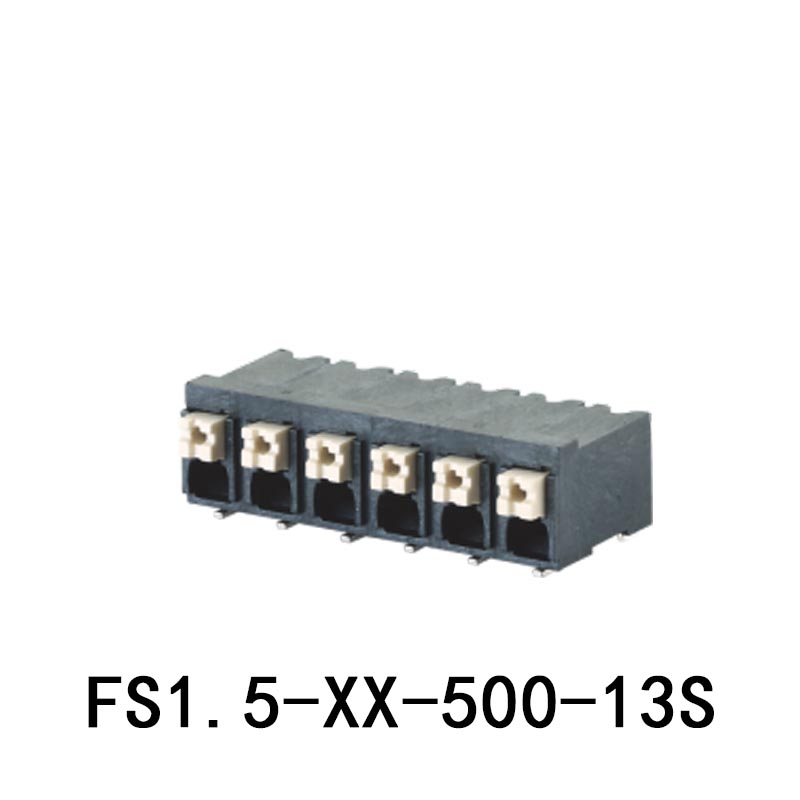

FS1.5-XX-500-13S PCB spring terminal block

FS1.5-XX-500-13S PCB spring terminal block

PCB spring terminal block Rated current: 10 A Rated voltage: 300 V Wire range: 24-16 AWG Pitch: 5.0 mm/5.08 mm Mounting: Reflow soldering
6P

Products weight: Package quantity:

Details

技术数据-UL/CUL

等级 Use Group		BCD
额定电压 Rate Voltage [V]		300-300
额定电流 Rated Current [A]		10-10
接线范围 Wire Range [AWG]		24~16
耐电压 Dielectric Voltage-Withstand		1..6KV

技术参数-IEC

过电压类别 Overvoltage Category		IIIIIIII
污染等级 Contamination Class		322
额定电压 Rated Voltage [V]		250320500
额定电流 Rated Current [A]		17.517.517.5
额定冲击电压 Impulse withstand voltage [KV]		444
导线截面积[硬/柔] Conductor cross section [mm²]		0.2~1.5

材料 Material

绝缘材料 Insulation Material		LCP
阻燃等级 Flame relardant rating		UL94V-0
导体材料 Conductor Material		Copper alloy
导体表面镀层 Plating of conductor surface		Sn plated

一般参数 Other Data

间距/极数 Pitch/Poles [mm]/[P]		5.0，5.08/2~24
剥线长度 Stripping Length [mm]		7~8
螺丝/扭矩 Screw/Torque(Max)[N.m]		/
工作温度 Operating temperature [℃]		-40~+130
焊锡温度 Soldering temperature		285℃/10S
引针尺寸 Pin dimensions [mm]		0.8*0.4
PCB板孔径 PCB Hole Diameter [mm]		/

尺寸图

PCB开孔图
