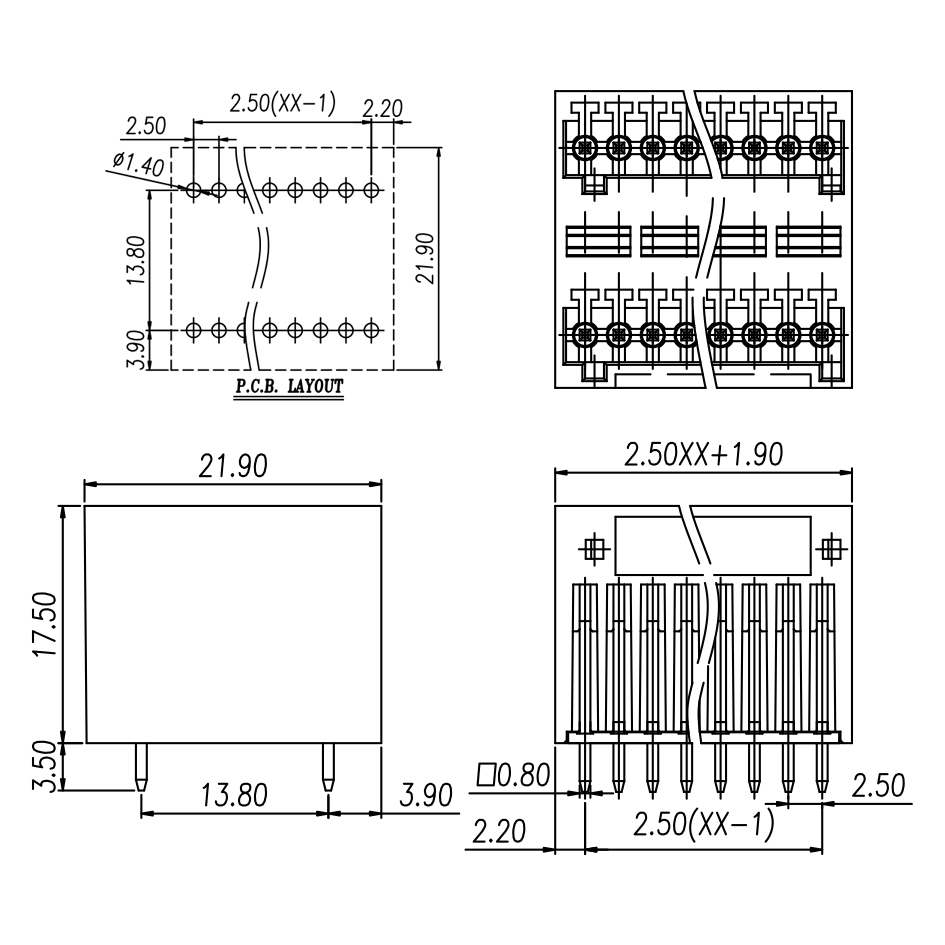

FPH0.5-XX-250-00-PCB plug in terminal block

  • PCB spring terminal block Rated current: 5A Rated voltage: 150 V Pitch: 2.5 mm
  • Poles
    2*2P
    2*3P
    2*4P
    2*5P
    2*6P
    2*7P
    2*8P
    2*9P
    2*10P
    2*11P
    2*12P
Products weight: Package quantity:

Details

UL/CUL
Use GroupBCD
Use Group150--
Rated Current [A]5--
Wire Range [AWG]/
Dielectric Voltage-Withstand1.3KV


IEC
Overvoltage CategoryIIIIIIII
Contamination Class322
Rated Voltage [V]80160320
Rated Current [A]555
Impulse withstand voltage [KV]1.52.52.5
Conductor cross section [mm²]/


Material
Insulation MaterialPA66
Flame relardant ratingUL94-V0
Conductor MaterialCopper alloy
Plating of conductor surfacesn piated


 Other Data
Pitch/Poles [mm]/[P]2.5/2*2~2*24
Stripping Length [mm]/
Screw/Torque(Max)[N.m] /
Operating temperature [℃]-40~+105
Soldering temperature250°C/5s
Pin dimensions [mm]0.8*0.8
PCB Hole Diameter [mm]∅1.4
