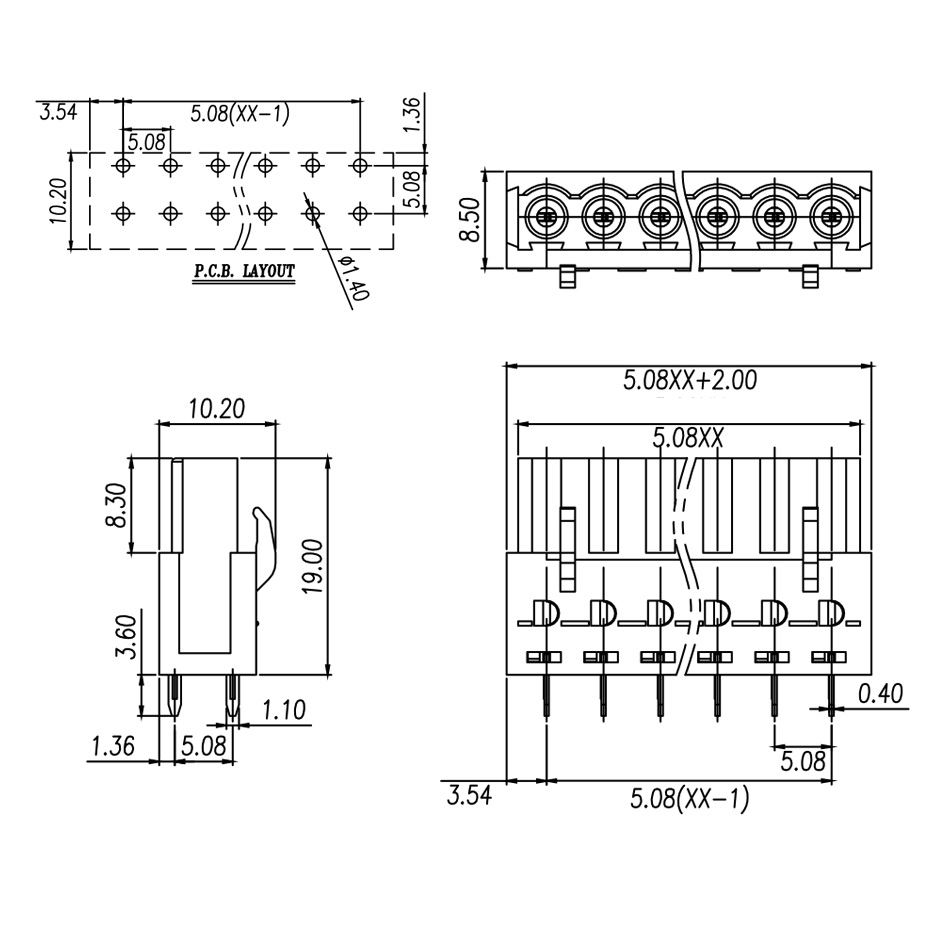

FPM2.5-XX-508-07 PCB spring terminal block

  • PCB connector| Rated current: 15 A| Rated voltage: 300 V| Pitch: 5.08 mm| Mounting: Wave soldering
  • Poles
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
Products weight: Package quantity:

Details

UL/CUL
Use GroupBCD
Rate Voltage [V]300-300
Rated Current [A]15-10
Wire Range [AWG]/
Dielectric Voltage-Withstand1.6KV


IEC
Overvoltage CategoryIIIIIIII
Contamination Class322
Rated Voltage [V]320320630
Rated Current [A]121212
Impulse withstand voltage [KV]444
Conductor cross section [mm²]/


Material
Insulation MaterialPA66
Flame relardant ratingUL94V-0
Conductor MaterialCopper alloy
Plating of conductor surfaceSn plated


 Other Data
Pitch/Poles [mm]/[P]5.0, 5.08/2-24
Stripping Length [mm]/
Screw/Torque(Max)[N.m] /
Operating temperature [℃]-40~+105
Soldering temperature250°c/5s
Pin dimensions [mm]0.4*1.1
PCB Hole Diameter [mm]∅1.4
