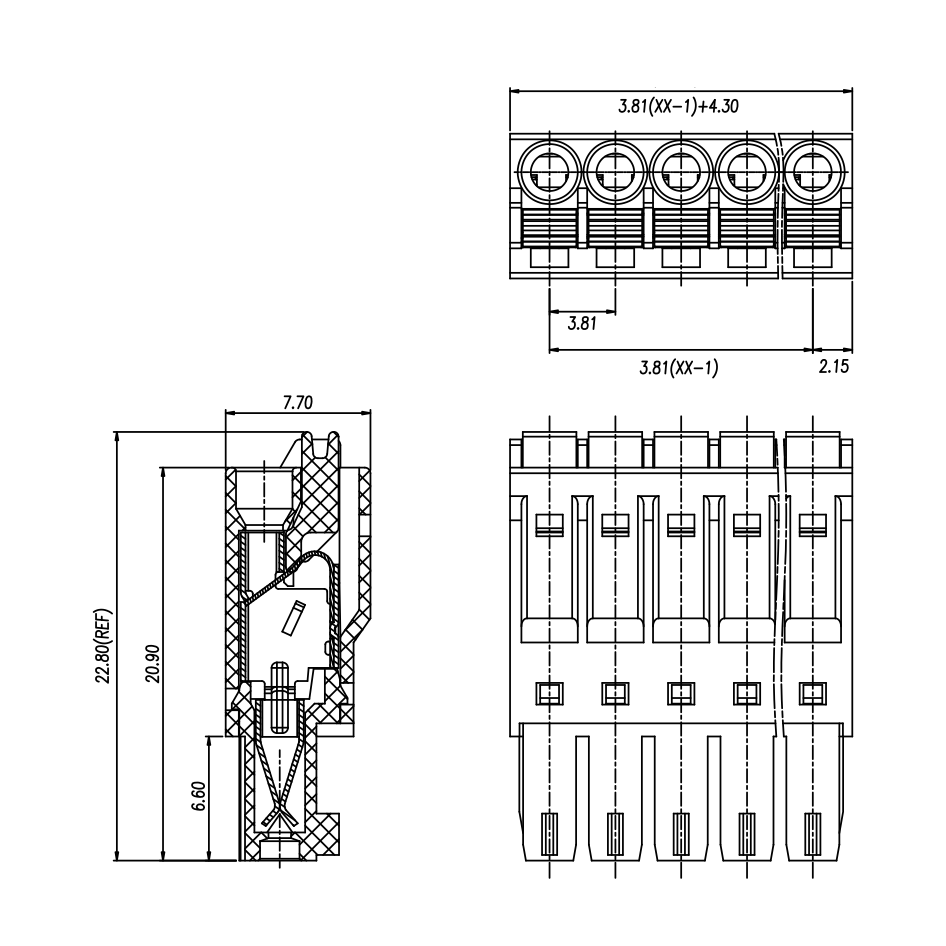

FPS1.5-XX-381-02 PLUG-IN TERMINAL BLOCK

  • pluggable terminal block Rated current: 8A Rated voltage: 300 V Pitch:3.81mm
  • 2
    3
    4
    5
    6
Products weight: Package quantity:

Details

UL/CUL
Use GroupBCD
Use Group300-300
Rated Current [A]8-8
Wire Range [AWG]28-26
Dielectric Voltage-Withstand1.6KV


IEC
Overvoltage CategoryIIIIIIII
Contamination Class322
Rated Voltage [V]160160250
Rated Current [A]777
Impulse withstand voltage [KV]2.52.52.5
Conductor cross section [mm²]0.2~1.5


Material
Insulation MaterialPA66
Flame relardant ratingUL94-V0
Conductor MaterialCopper alloy
Plating of conductor surfaceSn piated


 Other Data
Pitch/Poles [mm]/[P]3.5,3.81/2-24
Stripping Length [mm]7--8
Screw/Torque(Max)[N.m] /
Operating temperature [℃]-40~+105
Soldering temperature/
Pin dimensions [mm]/
PCB Hole Diameter [mm]/
