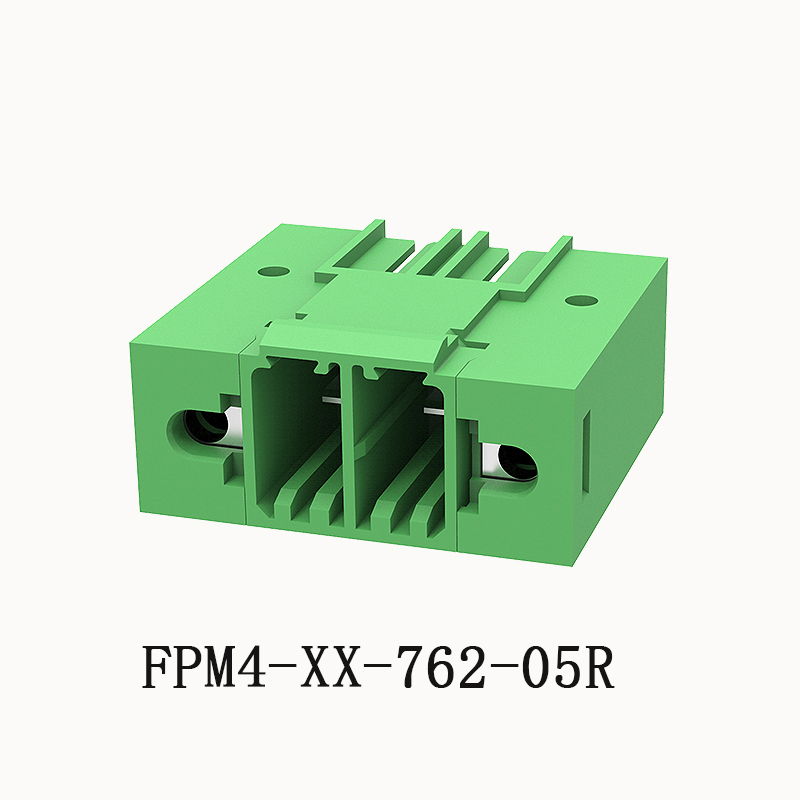

FPM4-XX-762-05R PLUG-IN TERMINAL BLOCK
Porducts
Contact Us
DONGGUAN CITY AOSI ELECTRONICS .,LTD
Ashley
TEL: +86-15999768769
Helen
TEL: +86-15016766649
Cindy
TEL: +86-15014816629
E-mail : helenqing123@gmail.com
| Soldering data | |
| Soldering method | Wave soldering/Manual soldering |
| Electrical parameters UL | |
| Rated voltage(B) | 300V |
| Rated voltage(C) | 300V |
| Rated voltage(D) | 600V |
| Rated current(B) | 16A |
| Rated current(D) | 5A |
| Rated current(C) | 41A |
| Electrical parameters IEC | |
| Rated voltage | 630V |
| Rated current | 41A |
| Rated voltage(II/2) | 1000V |
| Rated voltage(III/2) | 630V |
| Rated voltage(III/3) | 630V |
| Rated surge voltage(II/2) | 6KV |
| Rated surge voltage(III/2) | 6KV |
| Rated surge voltage(III/3) | 6KV |
| Item properties | |
| Connection direction | 90° |
| Mount type | PCB Mount/Soldering Mount |
| Pin arrangement | 3-row straight arrangement |
| Screw thread | M3 |
| Pluggable or not | Yes |
| Pitch | 7.62mm |
| Number of potentials | 2~24 |
| Number of rows | 1 |
| Material data | |
| Environmental item | Compliant with REACH/RoHS |
| Contact material | Copper alloy |
| Contact zone metal surface | Sn plated |
| Insulation materials | PA66 |
| Insulating material group | Ⅰ |
| Flammability rating | UL94V-0 |
| Mechanical tests | |
| Test specification | IEC61984/ UL1059 |
| Environmental data | |
| Ambient temperature(operation) | -40℃~105℃ |
