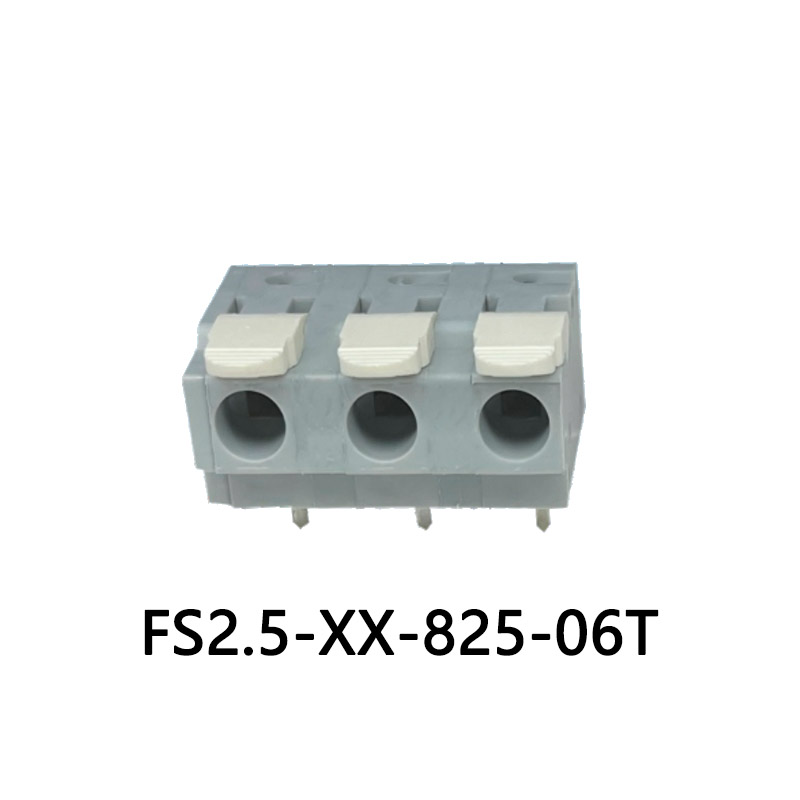

FS2.5-XX-825-06T PCB Spring terminal block
Porducts
Contact Us
DONGGUAN CITY AOSI ELECTRONICS .,LTD
Ashley
TEL: +86-15999768769
Helen
TEL: +86-15016766649
Cindy
TEL: +86-15014816629
E-mail : helenqing123@gmail.com
| Technical Data | |||
| Use Group | B | C | D |
| Rated Voltage[V] | 300 | - | 300 |
| Rated Current [A] | 12 | - | 10 |
| Wire Range [AWG] | 20~12 | ||
| Withstand Voltage | 1.6KV | ||
| Technical Parameters | |||
| Overvoltage Category | III | III | II |
| Pollution Degree | 3 | 2 | 2 |
| Rated Voltage [V] | 250 | 320 | 630 |
| Rated Current [A] | 24 | 24 | 24 |
| Rated Impulse Voltage [KV] | 4 | 4 | 4 |
| Conductor Cross-sectional Area (Rigid/Flexible)[mm²] | 0.25~2.5 | ||
| Materials | |||
| Insulation Material | PA66 | ||
| Flammability Rating | UL94-V0 | ||
| Conductor Material | Copper alloy | ||
| Conductor Surface Plating | Sn plated | ||
| General Parameters | |||
| Pitch/Number of Poles[mm]/[P] | 10.0/1~30 | ||
| Stripping Length [mm] | 10-11 | ||
| Screw/Torque(Max)[N.m] | / | ||
| Operating Temperature [℃] | -40~+105 | ||
| Soldering Temperature | 250℃/5S | ||
| Pin Size[mm] | 0.8*0.6 | ||
| PCB Hole Diameter[mm] | ∅1.3 | ||
