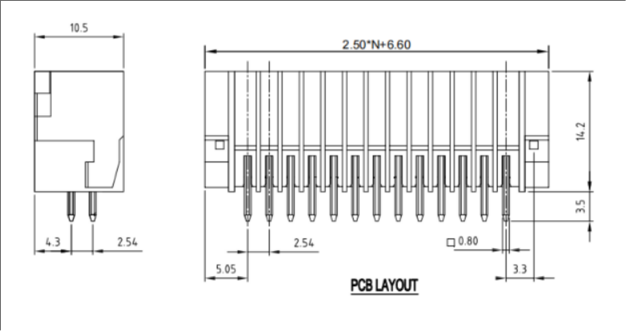

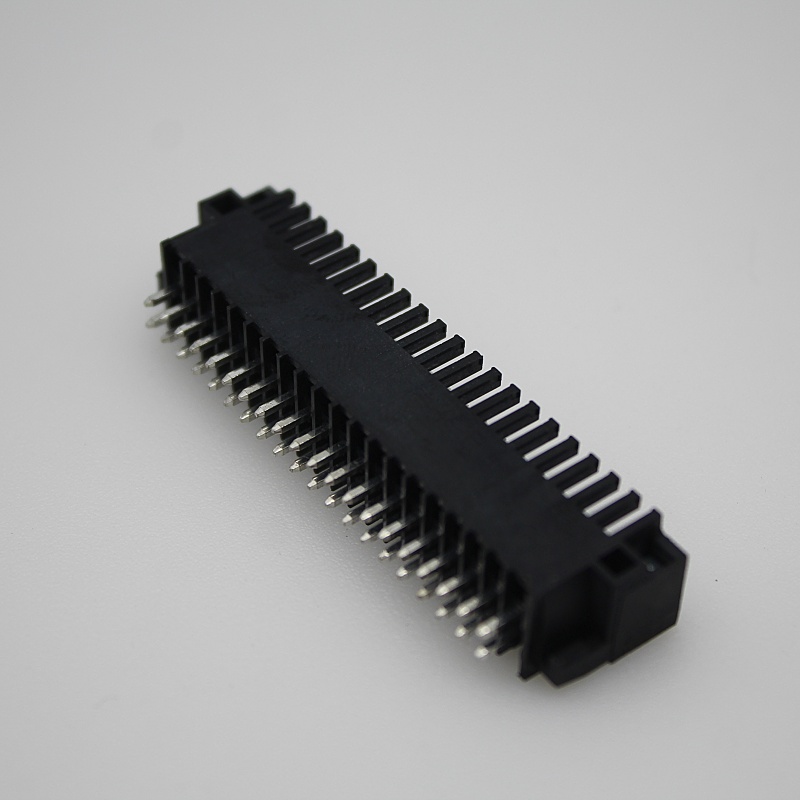

FPH2.5-XX-250-29 Plug-in Terminal Block
Porducts
Contact Us
DONGGUAN CITY AOSI ELECTRONICS .,LTD
Ashley
TEL: +86-15999768769
Helen
TEL: +86-15016766649
Cindy
TEL: +86-15014816629
E-mail : helenqing123@gmail.com
| UL/CUL | |||
| Use Group | B | C | D |
| Rate Voltage [V] | 250 | 150 | 150 |
| Rated Current [A] | 6 | 5 | 5 |
| Wire Range [AWG] | - | ||
| Dielectric Voltage-Withstand | 1.3KV | ||
| IEC | |||
| Overvoltage Category | III | III | III |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage [V] | 250 | 150 | 150 |
| Rated Current [A] | 6 | 5 | 5 |
| Impulse withstand voltage [KV] | 4 | 4 | 4 |
| Conductor cross section [mm²] | - | ||
| Material | |||
| Insulation Material | PA66 | ||
| Flame relardant rating | UL94V-0 | ||
| Conductor Material | Copper alloy | ||
| Plating of conductor surface | Sn plated | ||
| Other Data | |||
| Pitch/Poles [mm]/[P] | 2.54/2*(2~24) | ||
| Stripping Length [mm] | - | ||
| Screw/Torque(Max)[N.m] | - | ||
| Operating temperature [℃] | -40℃~+105℃ | ||
| Pin dimensions [mm] | - | ||
| PCB Hole Diameter [mm] | - | ||
