| Connection capacity | |
| Conductor cross section solid | 1.0~2.5mm² |
| Conductor cross section flexible | 1.0~2.5mm² |
| AWG | 24~14AWG |
| Strip length | 7mm |
| Electrical parameters UL | |
| Rated voltage (B) | 300V |
| Rated current (B) | 16A |
| Electrical parameters IEC | |
| Rated voltage | 630V |
| Rated current | 16A |
| Rated current(III/2) | 400V |
| Rated surge voltage(III/2) | 4KV |
| Item properties | |
| Connection direction | 90° |
| Connection method | Screw connection |
| Screwdriver | Slotted screwdriver |
| Rated torque) | TQ Lb In. 4.43 |

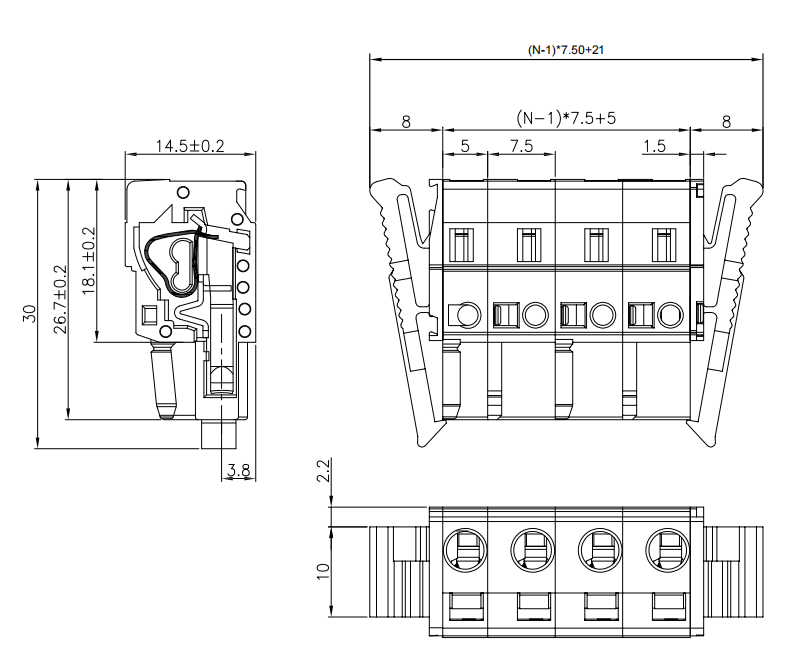

| Pitch | 7.5mm |
| Number of potentials | 2-24 |
| Pluggable or not | Yes |
| Number of rows | 1 |
| Material data | |
| Environmental items | Compliant with REACH/RoHS |
| Contact material | Copper alloy |
| Contact point metal surface | tin-plated |
| Contact zone metal surface | tin-plated |
| Insulation Materials | PA66 |
| Insulating material group | Ⅰ |
| Flammability rating | UL94V-0 |
| Mechanical tests | |
| Test Specification | IEC61984/ UL1059 |
| Environmental data | |
| Ambient temperature (operation) | -40℃~105℃ |
| Flammability rating | UL94V-0 |
| Mechanical tests | |
| Test Specification | IEC61984/ UL1059 |
| Environmental data | |
| Ambient temperature (operation) | -40℃~105℃ |
