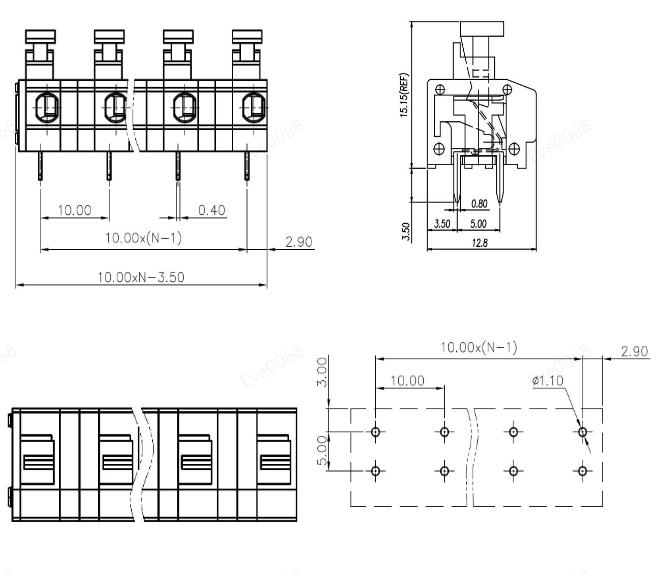

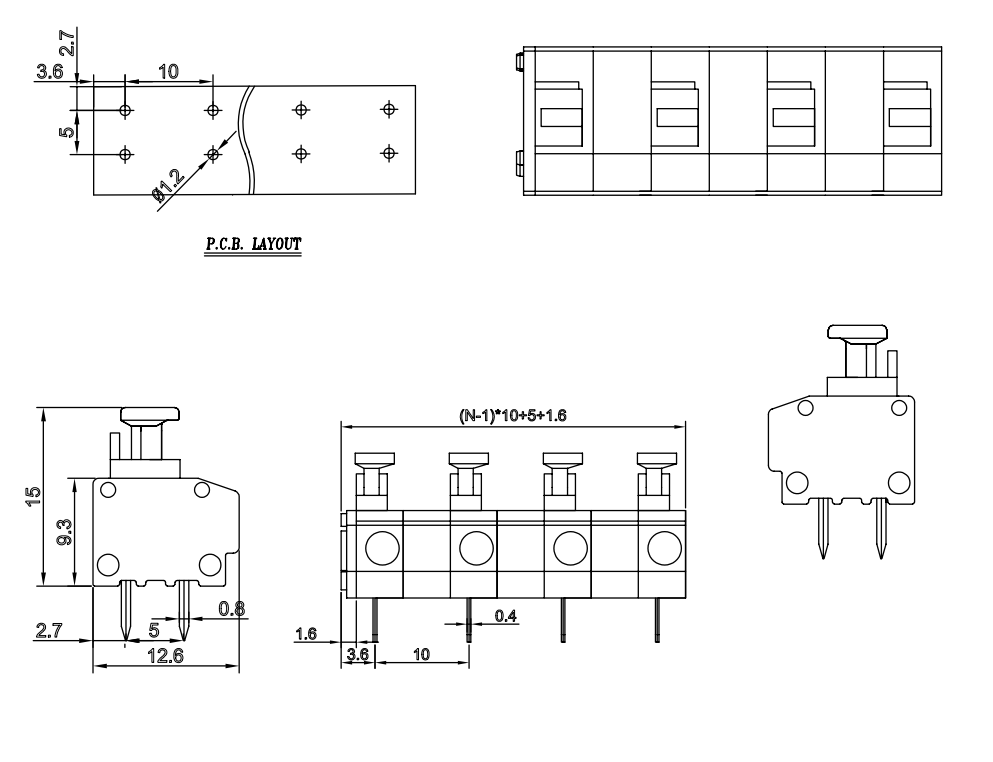

FS1.5-XX-1000-06 PCB spring terminal block

  • PCB spring terminal block Rated current: 5A Rated voltage: 300V Wire range: 22-18AWG Pitch: 10.0mm Mounting: Wave soldering
  • Poles
    01
    02
    03
    04
    05
    06
    07
    08
    09
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
Products weight: Package quantity:

Details

UL/CUL
Use GroupBCD
Use Group300-300
Rated Current [A]5-5
Wire Range [AWG]22~18
Dielectric Voltage-Withstand1.6KV

IEC
Overvoltage CategoryIIIIIIII
Contamination Class322
Rated Voltage [V]250320630
Rated Current [A]17.517.517.5
Impulse withstand voltage [KV]444
Conductor cross section [mm²]0.5~1.5  0.75-1.5

Material
Insulation MaterialPA66
Flame relardant ratingUL94-V0
Conductor MaterialCopper alloy
Plating of conductor surfaceSn plated

Other Data
Pitch/Poles [mm]/[P]10.0/1~30
Stripping Length [mm]9-10
Screw/Torque(Max)[N.m] /
Operating temperature [℃]-40~+105
Soldering temperature250℃/5S
Pin dimensions [mm]0.8*0.4
PCB Hole Diameter [mm]∅1.2
