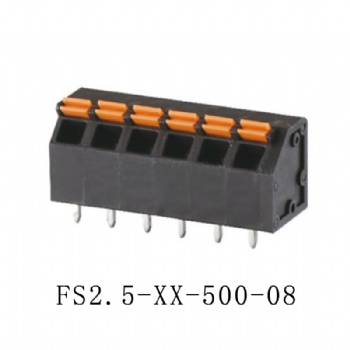

FS2.5-XX-500-08 spring terminal block

  • 4
    5
    6
    10
Products weight: Package quantity:

Details

Other Data
Pitch/Poles [mm]/[P]500/1~30
Stripping Length [mm]9~10
Operating temperature [℃]-40~+105
Soldering temperature250℃/5S
 Pin dimensions [mm]0.75*0.5

UL/CUL
 Rate Voltage [V]300
 Rated Current [A]10
 Wire Range [AWG]20-16 AWG
 Dielectric Voltage-Withstand1.6KV

Material
 Insulation MaterialPA66
 Flame relardant ratingUL94V-0
